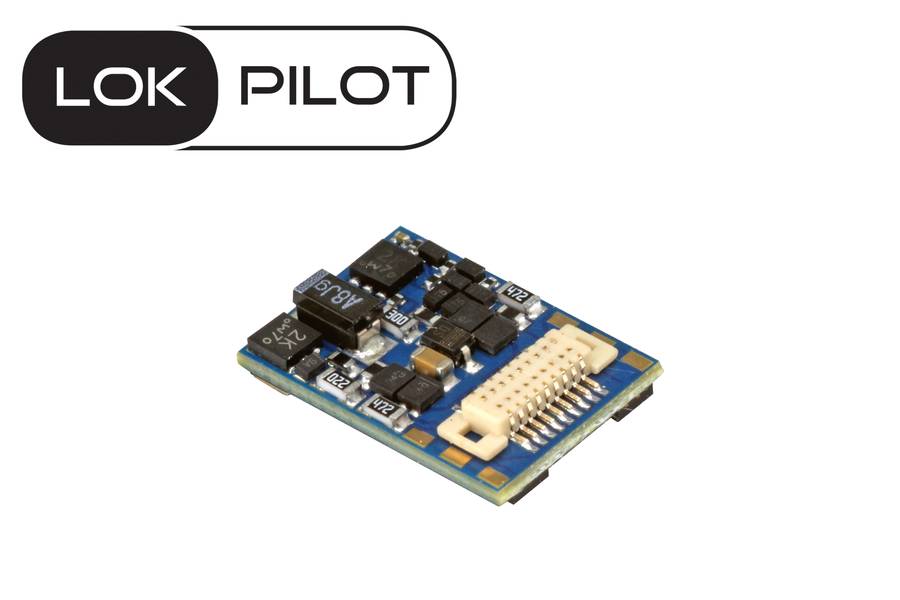

ESU 59818 LokPilot 5 micro DCC/MM/SX/M4 NEXT 18 NEM 662

Our Price: €38.25
Manufacturer Price: €42.40
In stock
(0) Write a Review
SKU:
59818
UPC:
4044645598184
Condition:
New

Product Description

The LokPilot 5 micro is the smallest digital decoder from ESU to date. Thanks to the use of subminiature components, 8-layer circuit boards and state-of-the-art manufacturing technology, at just 8.0mm x 7.0mm and a thickness of just 2.4mm (on the capacitor: 2.9mm), it is so small that it can be used even in very small locomotives Nominal sizes Z, N or TT can be accommodated. Nevertheless, functionality and robustness were not compromised compared to the larger versions.

LokPilot 5 micro decoders are offered with all common interfaces. The variants with Next18 or PluX16 interface are slightly larger with a footprint of 13.0mm x 9.2mm, but they also have the mfx®-compatible M4 protocol.

Operating modes

The LokPilot 5 micro is a true multi-protocol decoder. It supports the DCC data format as well as Motorola®, Selectrix® and M4. In the DCC format, 14 to 128 speed levels are as standard as 2 and 4-digit addresses and up to 32 functions. Thanks to RailComPlus®, the decoders log on to a suitable digital control center fully automatically.

It controls all DCC programming modes and thanks to RailCom®, the CV values ​​on the main track can be read out with suitable control centers. There are auxiliary registers for control panels that can only program CVs from 1-255.

Motorola® users benefit from up to 28 speed levels at 255 addresses. Three additional Motorola® addresses enable the triggering of 16 functions. A built-in programming mode also makes reprogramming possible with the venerable Control Unit 6021.

The Next18 and PluX16 variants also allow automatic registration to mfx®-compatible control panels thanks to the M4 protocol. All 32 possible function keys are offered here.

The LokPilot 5 micro decoder recognizes the Märklin® braking routes as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake modules or with direct voltage is also possible. In addition, it also stops with a Selectrix® brake diode. An ABC automatic shuttle train enables automatic commuting between two stations.

The LokPilot 5 decoder can be used on analogue DC railways. The variants with Next18 or PluX16 can also be used on analog AC systems. The maximum speed can be set separately.

The decoder switches between the operating modes fully automatically “on the fly”. Most of the time nothing needs to be set.

Features

We know that you want your locomotives to be as realistic as possible. We have therefore equipped the LokPilot 5 micro with an astonishing number of function outputs. The variants with 6-pin or 8-pin wiring harness offer 4 amplified function outputs, each with 180mA output current, as well as two logic level outputs for servos or Susi. The versions with Next18 or PluX16 interface have a total of 6 amplified outputs and two logic level outputs. All important lighting functions are available. The brightness of each output can be adjusted separately. The decoder controls automatic pressing and releasing when uncoupling for ROCO®, Krois® and Telex® couplings.

Motor control

The engine control of the LokPilot 5 micro has once again been fundamentally improved. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super-quiet operation, especially with bell-armature motors - the typical “humming” is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique “Autotune” function enables the decoder to be automatically calibrated to the motor. With up to 0.75A motor current, the LokPilot 5 micro decoder delivers enough juice for the intended application scenarios.

Operational safety

If desired, a PowerPack can be connected to the LokPilot 5 micro to bridge dirty rail sections.

Protection

Of course, the motor output and the function outputs are protected against overload. We want you to enjoy your decoder for as long as possible.
