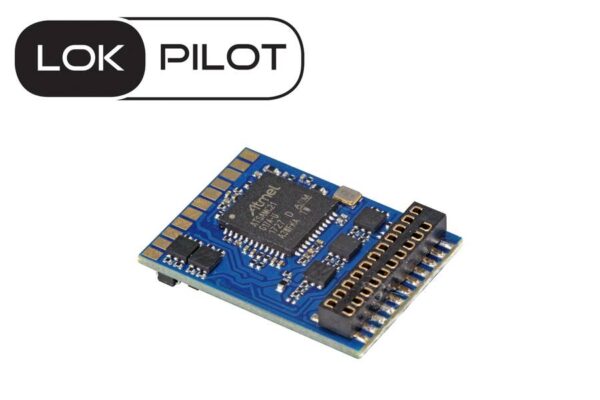

ESU 59629 – LokPilot 5 DCC, 21MTC NEM660

The LokPilot 5 DCC is the “twin brother” of the LokPilot 5. The two share almost all the characteristics, but the LokPilot 5 DCC is a pure DCC decoder and cannot be used on analog AC systems. However, this renunciation of flexibility is rewarded with a cheaper price

LokPilot 5 decoders are offered with all common interfaces.

Operating modes

The LokPilot 5 DCC is a “purebred” DCC decoder. 14 to 128 driving levels are as natural as 2- and 4-digit addresses. It can trigger up to 32 functions. Thanks to RailComPlus®, the decoders register fully automatically at a suitable digital control panel.

It masters all DCC programming modes and thanks to RailCom®, the CV values can be read out on the main track with suitable control units. For centrals that can only program the CVs of 1-255 exist auxiliary registers.

The LokPilot 5 DCC decoder recognizes the Märklin® braking routes as well as ZIMO® HLU / ZACK commands or the Lenz® ABC system. Braking with DCC brake blocks or with direct voltage is also possible. In addition, it also stops at a Selectrix® brake diode. An ABC shuttle train control allows automatic commuting between two stations.

The LokPilot 5 DCC decoder can be used on analog DC tracks. The maximum speed can be set separately.

The decoder switches between operating modes fully automatically “on-the-fly”. Usually nothing needs to be set.

Functions

We know that you want your locomotives to be as realistic as possible. Therefore, we have packed the LokPilot 5 DCC with function outputs. Depending on the interface version, each LokPilot 5 DCC decoder offers at least 10 amplified function outputs with 250mA output current each. In the versions with PluX22 or 21MTC interface, 4 more outputs for controlling servos or logic level outputs are added. All important lighting functions are available. The brightness of each output can be adjusted separately. The decoder controls the automatic pressing on and off when uncoupling for ROCO®, Krois® and Telex® couplings.

Engine control

The engine control of the LokPilot 5 DCC has again been fundamentally improved. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell anchor motors – the typical “humming” is a thing of the past. The load control can now be adapted to difficult cases with up to 10 CVs. The unique “Autotune” function allows the automatic measurement of the decoder to the motor. The LokPilot 5 DCC decoder delivers enough juice with up to 1.5A engine current even for older engines.

Operational safety

On request, a PowerPack can be connected to the LokPilot 5 DCC to bridge dirty track sections.

Protection

Of course, all function outputs as well as the engine output are protected against overload. We want you to enjoy your decoder for as long as possible.
